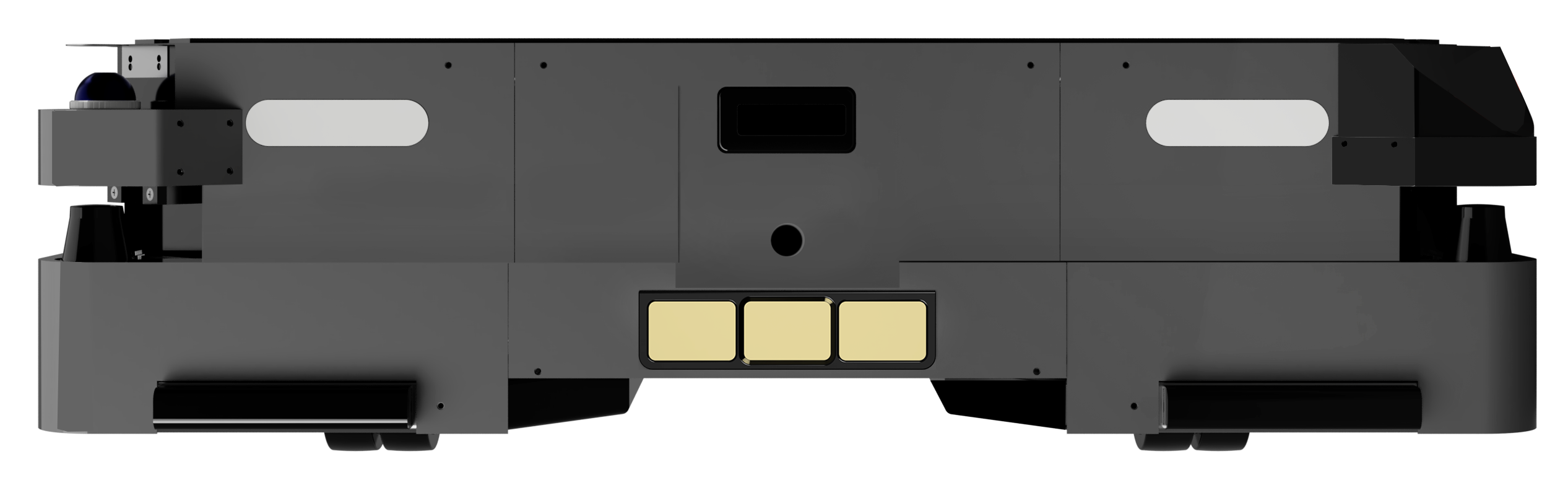

GoCart1500

Autonomous Mobiile Robot

Ideal for payload up to 1500 kg and Acceptable for delivering heavier materials than GoCart500/1000. Also, It’s usually adapted at factory, warehouse and hospitals based on top-module.

Payload

About 1500 kg

Operating Speed

Max 1 m/s

Container Loading Dimension(L*W)

Max 1222 mm X 822 mm

구분선(실선)

Main Features

Fleet Management System(FMS)

아티클 구분선(실선)

Support interface with FMS, EMR, MES, WMS

아티클 구분선(실선)

SLAM & Navigation based on YUJIN 3D LiDAR

아티클 구분선(실선)

Provides various top modules such as conveyors, lifting modules and DIM (Dynamic Interchangeable module)

구분선(굵은선)

Advantage

Agility& Flexibility

Intelligent mobile platform for various environments such as factory, warehouse, hospital and senior living facility

Safety & Reliability

Fast obstacle recognition and avoidance using multiple sensors
ISO13482 certified proprietary safety solution ideal for public facilities

Simple Installation & Integration

Shorter and cost-efficient installation and deployment time compared to traditional AGV system
Easy system Integration and interface for distributors and customers via Software Development Kit (SDK) and APIs

Elevator & Automatic Door Interface with FMS

Multi-floor operations interfacing elevators and automatic doors
Can operate in limited access areas such as operating rooms and intensive care units

구분선(굵은선)

Application

Factory

Parts and raw material delivery for assembly lines
Mobile pick-and-place with manipulators

Warehouse

Pallets, boxes, and individual items delivery
DPS (Digital Picking System) cart integration

Healthcare

Sterilized OT tools, lab samples
Medicine, waste, and meal delivery

Specification

Physical Specification
- Color
  - Gray
- Dimension (LxWxH)

  1353 x 1100 x 320 mm (53.27" x 43.31" x 12.6")
- Weight

  Around 400 kg (881.85 Ibs)
- Loading Surface Dimension (L x W)

  Max. 1222 x 822 mm (48.11" X 32.36")
Performance
- Max. Payload

  On flat floor: 1500 kg (3306.93 lbs), On slope/threshold: 1200 kg (2645.55 lbs)
- Operating Speed

  Max. 1 m/s
- Traversable Step

  Max. 5 mm (Based on 1200 kg Payload)
- Traversable Gap

  Max. 10 mm (Based on 1200 kg Payload)
- Slope

  2°
- Noise

  Below 60 dB
Electrical Speficiation
- Input (Charger Part)

  AC 200 ~ 240 V, 50/60 Hz, Max. 4KVA Max.18(AC220V)
- Output (Charger Part)

  DC 58 V, 60 A
- Input (Robot Part)

  DC 46 ~ 58 V(Nominal 51.7 V)
- Consumption Current

  About 9 A (different from environment)
- Allowable Voltage

  46 V min (If below 46 V, automatically power off)
Environment Specification
- Wi-Fi Frequency

  2.412 ~ 2.472 GHz, 5.180 ~ 5.240 GHz, 5.260 ~ 5.320 GHz, 5.500 ~ 5.700 GHz (Indoor use only)
- Wi-Fi Power

  Wi-Fi Power 2.4 GHz band: below 20 dBm (EIRP)5 GHz band: below 23 dBm (EIRP)
Battery
- Runtime

  Without load: approx. 13 hours, With load: approx. 10 hours
- Recharging Time

  Approx. 2 hours (20 % ~ 90 %)
